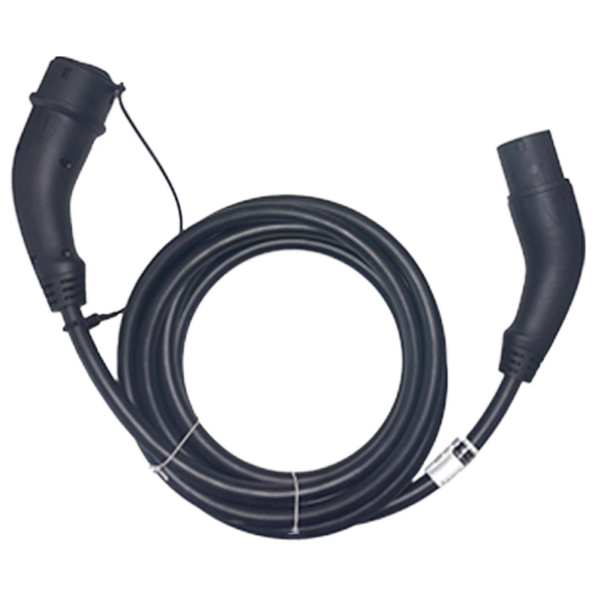

Zaptec Mode-3 Type-2 Charging Cable 32A 22kW 7.5m

Download datasheet

Specifications

Cable length m 7.5
Charging power kw 22
Connector standard Type-2 / IEC 62196-2
Ip rating IP54
Mpn 900-00174
Operating temperature max c +50
Operating temperature min c -30
Phases 3
Rated current a 32
Rated voltage v 480
Recent offer at 2026-07-28T08:06:41.179Z
Recent offer currency EUR
Recent offer price 137.60
Recent offer unit label Unit

Description

3-phase Mode-3 charging cable with Type-2 connectors on both ends, rated for 32A at 480V AC and up to 22 kW charging power. Cable length is 7.5 meters with straight conductor design and TPE-U outer sheath.

Complies with IEC 62196-2 standard and features IP54 protection rating. Operating temperature range -30°C to +50°C; storage temperature -40°C to +80°C. Connectors are black FRIANYL plastic with silver-plated Cu-alloy contacts and crimp termination (not disconnectable).

Cable structure: 5 × 6.0 mm² + 0.5 mm² with 16.5 ± 0.3 mm diameter. Minimum bending radius 9× cable diameter. Supports over 10,000 mating cycles with insertion/withdrawal force under 100 N.
