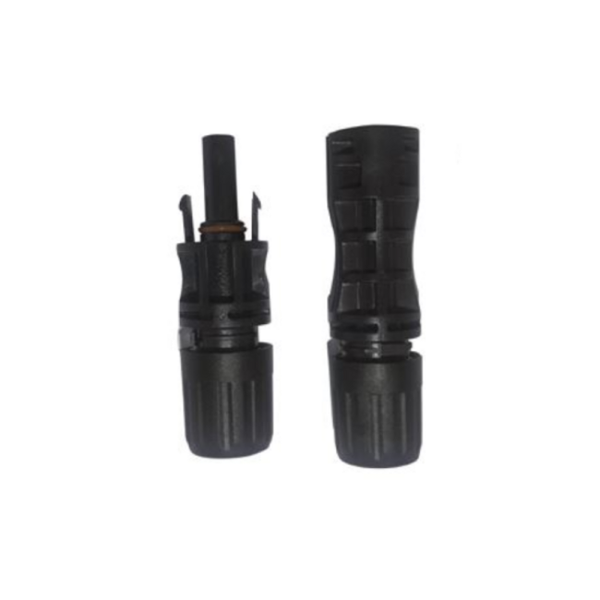

Jinko JK03M2 PV Cable Connector Set M/F 10-Pack

Name: Jinko JK03M2 PV Cable Connector Set M/F 10-Pack
Brand: Jinko Solar
Availability: InStock

Download datasheet

Specifications

Ambient temperature range	-40°C to +85°C
Certification bodies	TÜV, UL, JET
Certification standard	IEC/EN 62852
Conduction material	Cu alloy plating
Contact resistance	≤0.3 mΩ
Insulation material	PPE/PA
Ip rating mated	IP68
Ip rating unmated	IP2X
Mpn	JK03M2 Set M/F 10
Rated current 45a	4.0 mm²
Rated current 50a	6.0 mm²
Rated voltage	1000V DC / 1500V DC
Recent offer at	2026-07-28T08:06:41.179Z
Recent offer currency	EUR
Recent offer price	2.61
Recent offer unit label	Unit
Set contents	Male and Female pair, 10-pack

Description

The Jinko JK03M2 is a PV cable connector set designed for safe and easy connection of photovoltaic modules in parallel or serial-parallel configurations. This 10-pack includes both male and female connectors compatible with all Jinko connector systems.

The connector features high security (tool-required disconnect), low contact resistance (≤0.3 mΩ), and robust construction with ozone and UV resistance. It is IP68-rated when mated and meets IEC/EN 62852 certification standards (TÜV, UL, JET approved). Rated for 1000V DC / 1500V DC operation with 45A (4.0 mm²) or 50A (6.0 mm²) rated current, and operates across -40°C to +85°C ambient temperature range.

The connector uses crimped terminal connections with copper alloy plating and PPE/PA insulation material, providing Class II protection and Class A application rating.
