Specifications
| Cell technology | N-type TOPCon |
| Dimensions | 1953 x 1134 x 30 mm |
| Frame | fullblack |
| Modules per pallet | 36 |
| Recent offer at | 2026-10-27T05:00:27.868Z |
| Recent offer currency | EUR |
| Recent offer price | 2755.96 |
| Recent offer price per wp | 0.153109 |
| Recent offer unit label | Palette |
| Warranty product years | 25 |
| Wattage w | 500 |
| Weight kg | 27.3 |
Description

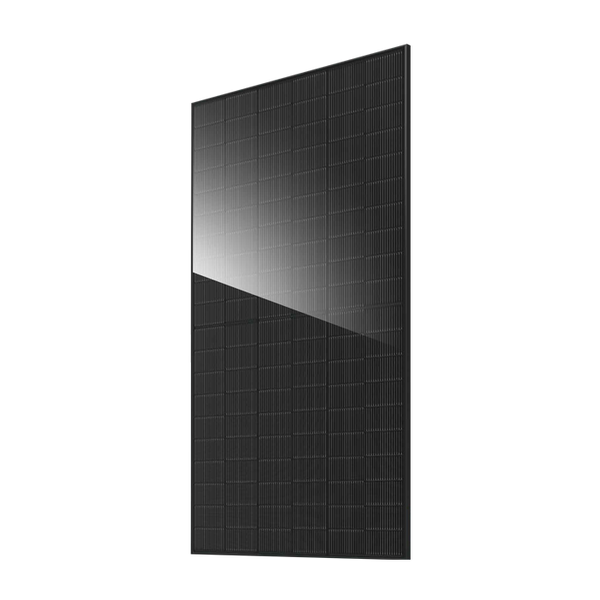

JA Solar JAM60D41-500/LB N-Type 500 W Bifacial Dual-Glass All Black Solar Panel
This high-quality N-type bifacial solar panel from JA Solar is designed for optimal energy yield and durability. Thanks to its innovative half-cut cell technology and dual-glass construction, the panel is highly efficient and suitable for a wide range of installations.
Key Features
- Cell Type: N-type monocrystalline, half-cut, 120 cells (6x20)
- High Efficiency: Achieves a module efficiency of up to 26%, guaranteeing an optimal energy yield.
- Technology: N-type, TOPCon, bifacial, dual-glass
- Dimensions: 1953 mm × 1134 mm × 30 mm
- Weight: 27.3 kg
- Colour: All Black, including frame and rear side
- Connector: MC4-EVO2, cable length 1200 mm (landscape)
- Operating Temperature: -40° to +85°
- Front Glass: 2.0 mm anti-reflection coating
- Frame: Black anodised aluminium alloy
Main Advantages
- Higher Yield: The bifacial technology absorbs sunlight from both the front and rear sides, significantly increasing energy yield, especially with reflective surfaces.
- Exceptional Durability: The dual-glass construction offers superior protection against micro-cracks, PID (Potential Induced Degradation), and other environmental factors, resulting in a longer service life.
- Low Degradation: N-type cells show very low initial degradation (LID) and low annual degradation, ensuring stable and reliable energy production over a long period.
- Excellent Performance: The panel delivers high efficiency and also performs optimally in low irradiance conditions, such as on cloudy days.
- Aesthetic Design: The All Black version provides a sleek and uniform look, making the panel highly suitable for architecturally demanding projects.
Applications
This solar panel is ideal for a wide range of projects, from residential rooftops to commercial and industrial installations. Due to its bifacial property, the panel is exceptionally well-suited for installations on rooftops with light-coloured surfaces, carports, and ground-mounted systems where reflective light increases the yield.
Warranty and Durability
JA Solar offers a robust warranty for this panel:
- Product Warranty: 25 years
- IP Rating: IP68, for optimal protection against water and dust.
- Load Resistance: The panel can withstand a static load of 5400 Pa on the front side and 2400 Pa on the rear side.
Product datasheet
JA Solar N-Type 500 W - Bifacial Double Glass All Black Solar Panel
