Dyness DCB-5-50-HV HV Battery Combiner Box (5-in / 2-out)
Download datasheetSpecifications
| Degree of protection ip | IP65 |
| Height | 450 mm |
| Lenght | 150 mm |
| Nominal current | 200 A |
| Recent offer at | 2026-08-18T05:00:04.436Z |
| Recent offer currency | EUR |
| Recent offer price | 280.44 |
| Recent offer unit label | Unit |
| Weight | 13 kg |
| Width | 545 mm |
Description
Overview

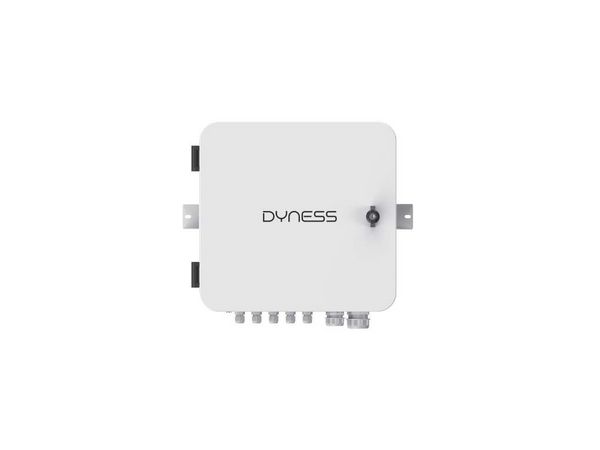

The Dyness DCB-5-50-HV is a high-voltage DC combiner box that parallels up to five Dyness Tower Pro battery clusters into two common outputs feeding the inverter/PCS. It lets installers scale storage capacity safely without running every battery string directly to the inverter, and its IP65 enclosure allows both indoor and outdoor wall mounting.
Key Features
- 5 inputs / 2 outputs – connect up to five HV battery clusters in parallel to meet a wide range of capacity requirements.
- Robust high-current handling with a 200 A maximum input and 40 A per single channel for reliable operation.
- Wide 160–650 V DC operating window matched to high-voltage residential and commercial storage systems.
- IP65-rated, waterproof and dustproof enclosure suitable for diverse indoor and outdoor environments.
- Compact, lightweight 13 kg design for quick wall-mounted installation.
Technical Specifications
Compatible Batteries
- Dyness Tower Pro series (TP7, TP11, TP15, TP19, TP23)
Applications
- Paralleling multiple HV battery clusters in residential energy storage
- Commercial and industrial battery storage requiring expanded capacity
- Indoor or outdoor installations needing an IP65-rated DC combiner
Product datasheet
