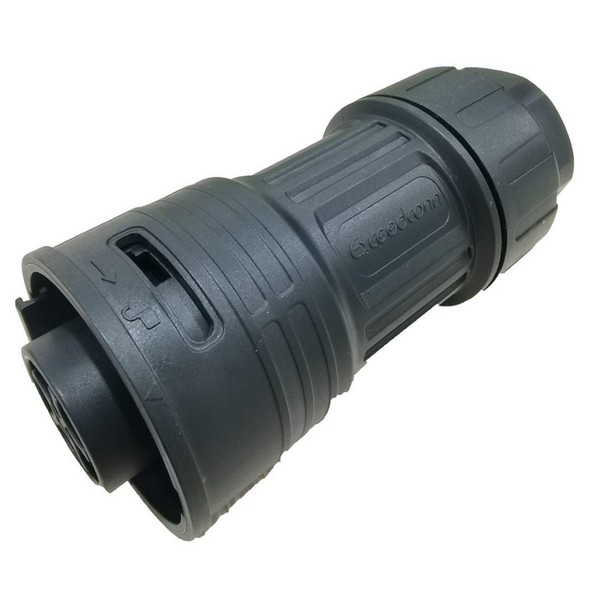

APsystems 5C AC Bus Cable Male Connector 40A 3-Phase

Name: APsystems 5C AC Bus Cable Male Connector 40A 3-Phase
Brand: APsystems
SKU: 3134-APS5CACMALE4-REQUESTPRICE
Availability: InStock

Download datasheet

Specifications

Cable gauge mm2	2.5–10
Connector gender	male
Contact resistance mohm	≤50
Dielectric voltage v	3000
Insulation resistance mohm	≥500
Ip rating	IP67
Mating cycles	≥500
Mpn	2301511002
Operating temperature c	−40 to +105
Phases	3
Rated current a	40
Rated voltage v	600
Recent offer at	2026-08-20T08:35:26.687Z
Recent offer currency	EUR
Recent offer price	7.09
Recent offer unit label	Unit

Description

3-phase AC bus cable male connector for APsystems inverter systems. Rated for 40A at 600V with 5-conductor configuration, enabling quick and waterproof connection extensions of the APS-5C-AC-BUS-2.4 bus cable.

Specifications: contact resistance ≤50 mΩ, dielectric withstanding voltage 3000V, insulation resistance ≥500 MΩ, mating cycle rated for ≥500 cycles. Cable gauge compatible with 2.5–10 mm² conductors. IP67 protection class (IP67 Im-30min after mating). Operating temperature range −40°C to +105°C.

Part of the APS-5C connector ecosystem and sold as a spare part. Female connector version sold separately.
