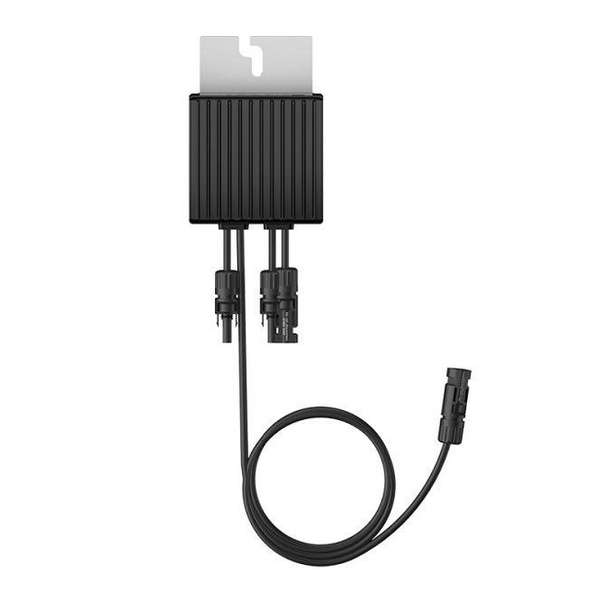

Huawei MERC-1300W-P Smart Module Controller Optimizer
Download datasheetSpecyfikacja
| Cable version | Long-input-cable (input 1.3 m, output 2.9 m / 0.1 m) |
| Dimensions mm | 149 × 104 × 49 |
| Input connector | Stäubli MC4 |
| Ip rating | IP68 |
| Max efficiency percent | 99.5 |
| Max output current a | 22 |
| Max output voltage v | 80 |
| Mpn | 02314AQB |
| Mppt voltage range v | 12.5–105 |
| Operating temperature range | –40°C to +85°C |
| Output connector | Stäubli MC4 |
| Rated input power w | 1300 |
| Recent offer at | 2026-10-20T05:21:05.214Z |
| Recent offer currency | EUR |
| Recent offer price | 76.53 |
| Recent offer unit label | Unit |
| Safety standard | IEC62109-1 (Class II) |
| Weight kg | 1.0 |
Opis
The Huawei MERC-1300W-P is a smart module-level power optimizer designed for use with Huawei SUN2000 series inverters. It delivers module-level optimization to increase system energy yield by 5% to 30%, with maximum efficiency of 99.5% and weighted efficiency of 99.0%.
The optimizer features active safety with safe voltage shutdown (1 V when disconnected or inverter off), pinpointing open-circuit fault detection for quick troubleshooting, and a long string design to reduce balance-of-system costs. It operates across an MPPT voltage range of 12.5–105 V with a maximum output of 80 V at 22 A.
Installation is quick and simple with a single screw mount. The device is IP68-rated and operates reliably from –40°C to +85°C. Each PV module under the same inverter must be equipped with a MERC optimizer for full optimizer configuration.
