Specyfikacja
| Communication protocol | RS485 |
| Dimensions mm | 420 × 320 × 131 |
| Ip rating | IP65 |
| Max input current a | 5 |
| Max inverters controlled | 60 |
| Mpn | GA10081-60-00P |
| Operating temperature range c | -25 to +60 |
| Recent offer at | 2026-07-28T08:06:41.179Z |
| Recent offer currency | EUR |
| Recent offer price | 359.03 |
| Recent offer unit label | Unit |
| Weight kg | 4 |
Opis

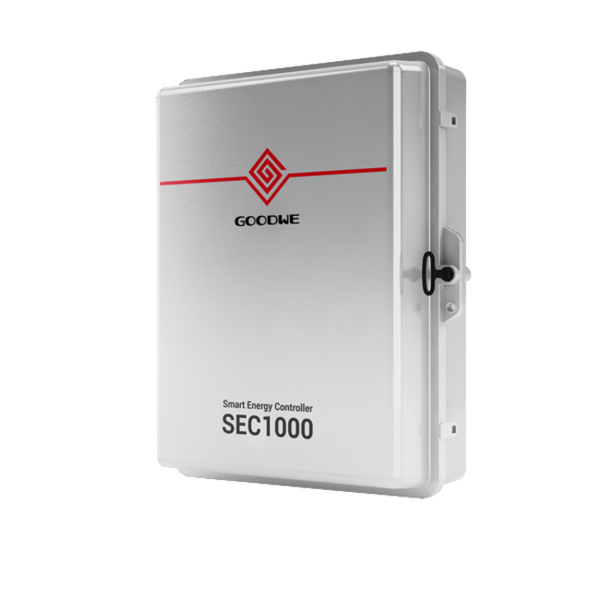

The GoodWe SEC1000 is a Smart Energy Controller designed to monitor and manage the performance of GoodWe three-phase inverters via RS485 communication. It features a three-phase meter and control panel, enabling monitoring, export power regulation, and reactive power compensation for grid-connected systems.
The device can control up to 60 inverters with a maximum communication distance of 1000 m. It supports 50 Hz and 60 Hz grid frequencies, with input voltage ranges from 60–280 V AC (phase) and 100–480 V AC (net), and maximum input current of 5 A. Nominal power consumption is less than 10 W.
Housed in an IP65-rated enclosure measuring 420 × 320 × 131 mm and weighing 4 kg, the SEC1000 operates in ambient temperatures from −25 to +60 °C and relative humidity from 0 to 100%. Current transformers (CTs) are sold separately.
Karta katalogowa produktu
GoodWe SEC1000 Smart Energy Controller for 3-Phase Inverters
