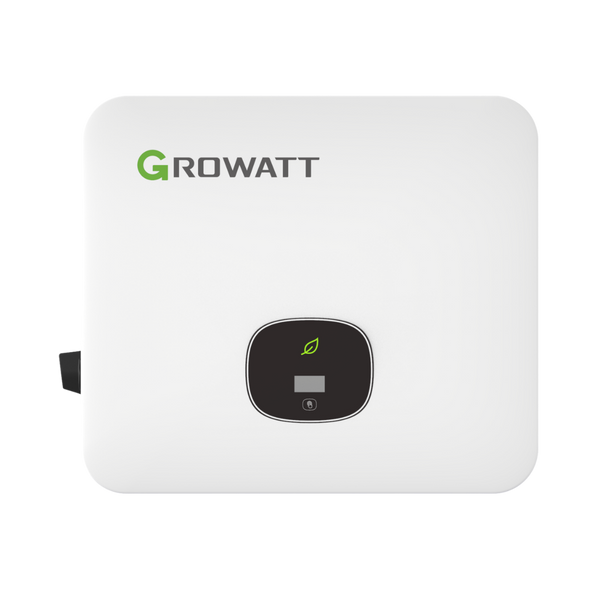

Growatt MOD 10KTL3-HU 3-Phase Hybrid Inverter 10kW

Growatt MOD 10KTL3-HU – 3-phase Grid-Tied Inverter 10.0 kW

The Growatt MOD 10KTL3-HU is a 3-phase grid-tied inverter designed for residential and small-scale commercial PV installations. This advanced model maximises energy yield with optimised performance and high reliability.

Key Features

• Battery ready: Compatible with the APX battery systems (refer to the configuration checklist in the appendix for the correct configurations)
• Integrated backup functionality: No additional backup box required.
• Three independent MPP trackers (MPPT): Optimises energy yield, even in complex roof situations or with varying solar panel orientations.
• Integrated surge protection: Protects both the DC and AC sides with Type II SPDs (Surge Protection Devices).
• Arc-Fault Circuit Interrupter (AFCI): Detects and interrupts arc faults to minimise fire hazards.
• Natural convection cooling: This fanless design ensures quiet operation and increases the system's durability.

Technical Specifications

• Input Data (DC):

  • Max. input power: 20000 W

  • Max. DC voltage: 1000 V

  • MPP voltage range: 140 - 1000 V

  • Nominal DC voltage: 600 V

  • Number of MPP trackers: 3

  • Max. input current (per MPPT): 20 A

• Output Data (AC):

  • Nominal AC power: 10000 W

  • Max. AC power: 11000 W

  • Max. output current: 16.7 A

  • AC grid frequency: 50/60 Hz

  • Number of phases: 3

Key Benefits

• High efficiency: Achieves a maximum efficiency of 98.6%, resulting in optimal energy yield and a fast return on investment.

• Advanced monitoring: Comprehensive monitoring options via Wi-Fi, Ethernet, or RS485, with 24-hour self-consumption monitoring.

• Reliable safety: Multiple safety features, including AFCI and surge protection, provide secure operation.

Applications

This product is primarily suitable for residential installations and small-scale commercial projects that require a robust and efficient 3-phase inverter. The dual MPPT trackers make the system ideal for roofs with multiple orientations or pitch angles, allowing it to adapt to diverse project requirements.

Warranty and Durability

The Growatt MOD 10KTL3-HU features an IP66 protection rating, making it suitable for both indoor and outdoor installation. The transformerless design and natural cooling minimise energy losses and extend the lifespan. The inverter comes with a 10-year product warranty.
